wrought iron machine, scroll bending machine for iron art work

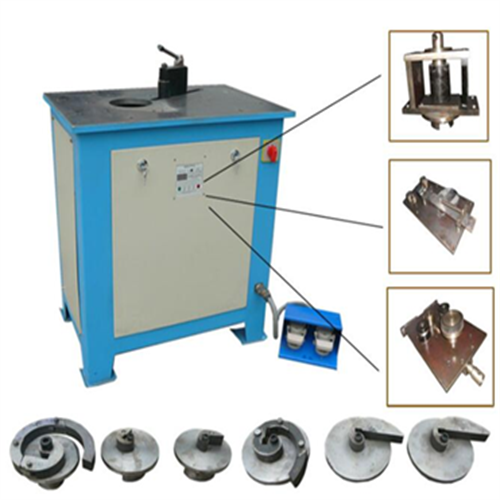

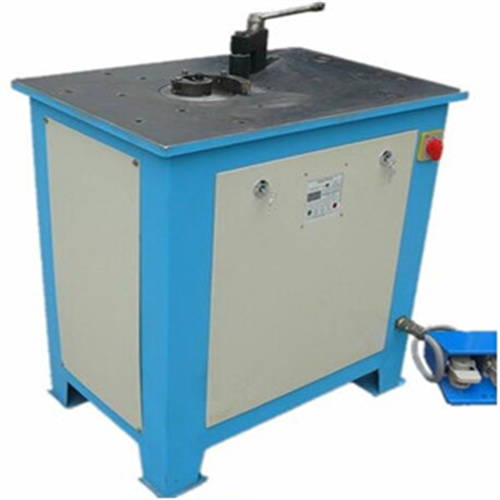

DW16E Program Controlled Scroll Bender is improved from DW16A Electric Scroll Bender. It based on DW16A to improve the program controlled as PC. The machine is making as automatic design, program controlled orienting, automatic withdraw material and program controlled brake, that keep the samples are all the same. Stop shoving ensures keep the machine never crashes. The high working ability can bend 16*16MM square steel, the speed is 1.5 times than before. It is greatly reducing the labor intensity and improve work efficiency.
Technological Depiction：
DW16E Program Controlled Scroll Bender
| ||
Max Working Ability | Flat Iron | ≤8mm*50mm |
Round Steel | ≤Φ16mm | |
Square Steel | ≤16mm*16mm | |
Motor Performance | Power： 1.5KW Voltage： 380V | |

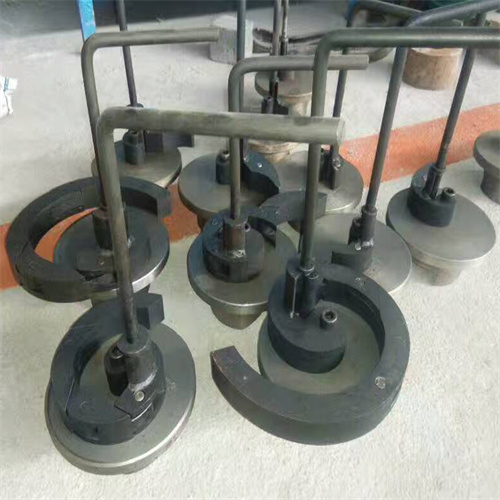

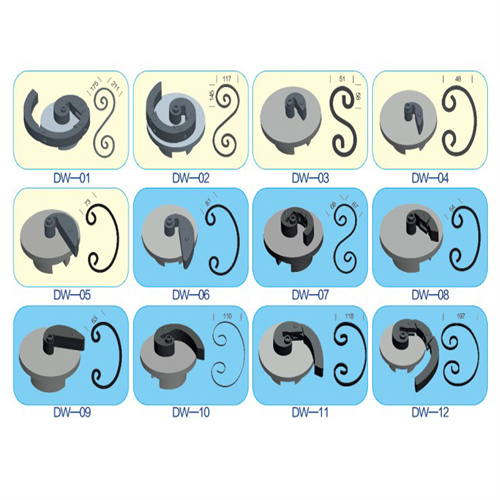

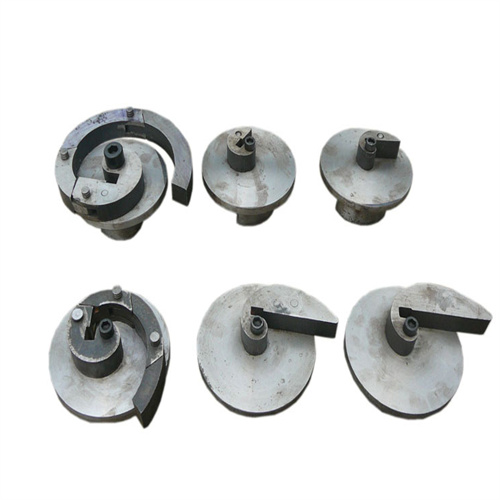

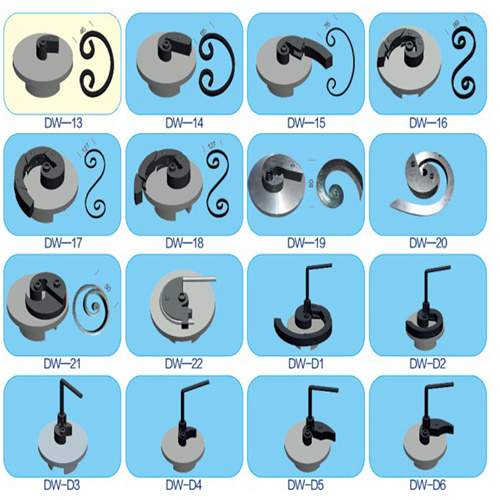

Main Features | 1)Die novelty designed, surface smooth, mold our spread a large space, convenient for operation. 2)It is convenient for changing dies. 3)The high working ability can bend square steel 16*16MM. 4)High produce efficiency, it can bend C sample as 20*6MM 450pcs per hour. 5)Comprehensive function, it can bend all kinds and specification of C, P, and S patterns. The machine fit for processing product pattern of all kinds and sizes, is equipped with three kinds of holdup wheels: φ50mmφ30mmφ20mm. | |
Packing Dimension | 1000mm×700mm×1200mm | |
N. W. (kg) | 240 | |
G.W. (kg) | 260 | |
