76 pipe bending machine

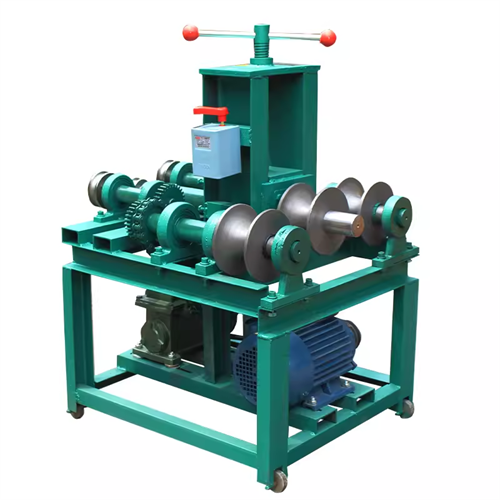

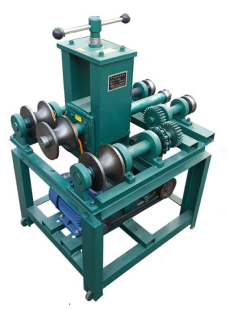

DLG2 General Electric Pipe Bender This machine is used to process square pipe, round pipe, stainless pipe and flat iron.

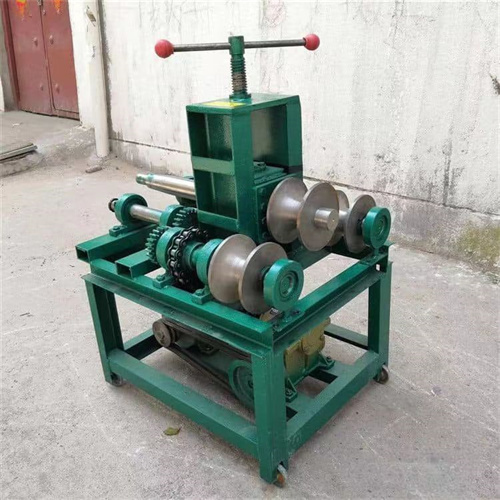

DLG2 General Electric Pipe Bender

76 pipe bending machine(图1)76 pipe bending machine(图2)

76 pipe bending machine(图3)76 pipe bending machine(图4)



This machine is used to process square pipe, round pipe, stainless pipe and flat iron. It is the necessary equipment to bend pipe for producing gates. The machine can be installed with the dies on both sides. It also can bend flat iron.

Technological Depiction



G2 General Electric Pipe Bender

Working Ability

Square Pipe

20mm×20mm75×75mm

Round Pipe

Φ19mm76mm

Motor  Performance

Power2.2KW       Voltage380V/220V

Main Features

1Working ability, 0.3mm-2mm thickness tube.

2It can install dies on both side.

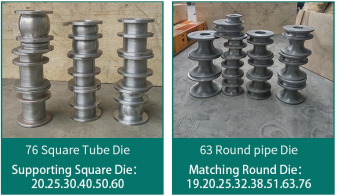

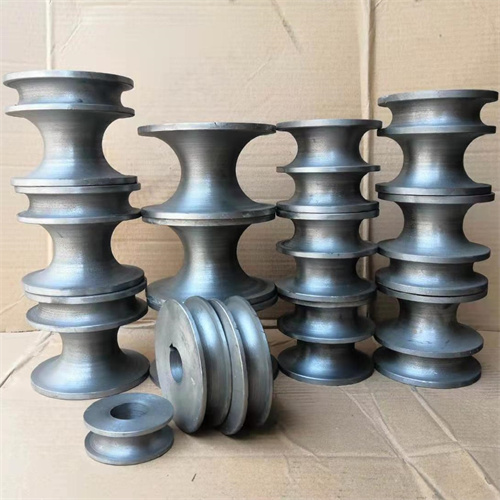

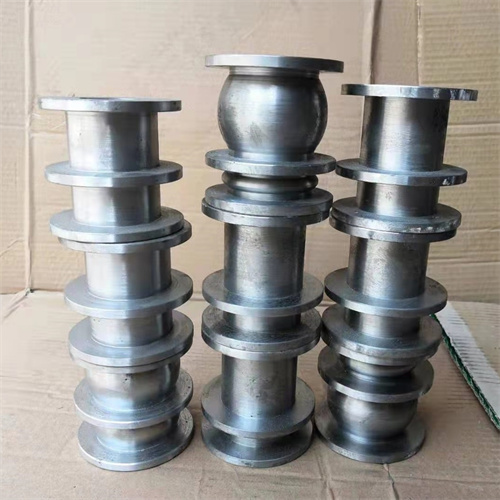

3Moulds: There are 14 kinds of the dies come with the machines, 6 sets for square pipe: 20×20mm, 25×25mm, 30×30mm, 40×40mm, 50×50mm, 60×60mm   Besides that. 8 sets for round tube:  φ19mm, φ22mm, φ25mm, φ32mm, φ38mm, φ51mm, φ63mm, and φ76mm.

4). Use: Making all kinds wrought iron gate, fence, railling, handrail, greenhouse, and other kinds steel strucure and so on.

Packing Dimension

               1000mm×800mm×550mm

N.W. (kg)

220

G.W. (kg)

255
