This machine is used to process square pipe, round pipe, stainless pipe. It is the necessary equipment to notch pipe for prod
This machine is used to process square pipe, round pipe, stainless pipe. It is the necessary equipment to notch pipe for producing gate, fence, railing handrail and so on. The machine can be installed with the dies on both sides. It also can bend flat iron.
Technological Depiction：

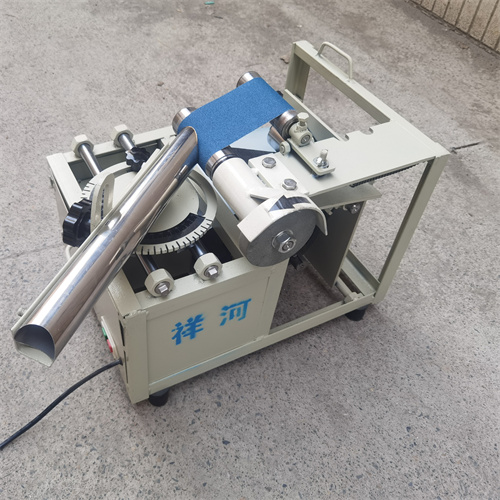

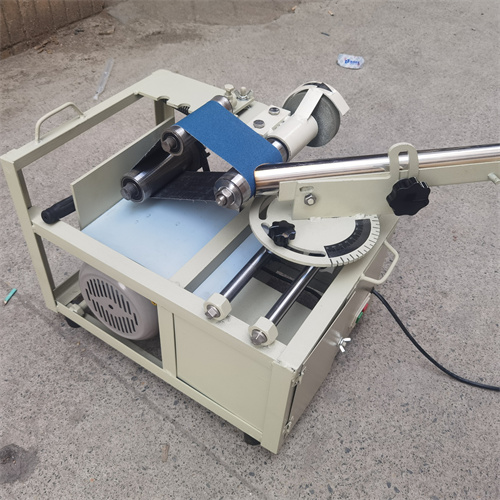

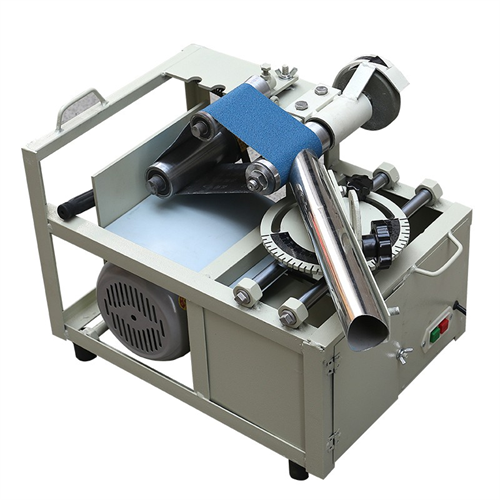

TC-S2 Adjustable tube notching machine | ||
Working Ability | Square Pipe | 19mm×19mm～76×76mm |
Round Pipe | Φ19mm～76mm | |
Motor Performance | Power：1.1KW Voltage：380V/220V | |

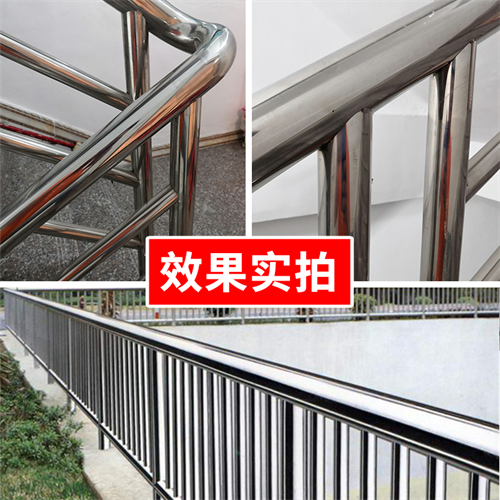

Main Features | 1）Working ability: 0.2mm- 5mm thickness tubes. 2）It can adjust the angle degree, such as 90 degree for hand rail or 58 degree for stair handrail. 3）Moulds: 19mm, 22mm, 25mm, 32mm, 38mm, 51mm, 63mm, 76mm 4). Use: Making all kinds iron or stainless steel gate, fence, railling, handrail, greenhouse, and other kinds steel strucure and so on. | |
Packing Dimension | 335mm×385mm×450mm | |
N.W. (kg) | 45 | |
G.W. (kg) | 46 | |
