DW16G Program Controlled Scroll Bender is improved from DW16E Electric Scroll Bender. It based on DW16E to improve the functi

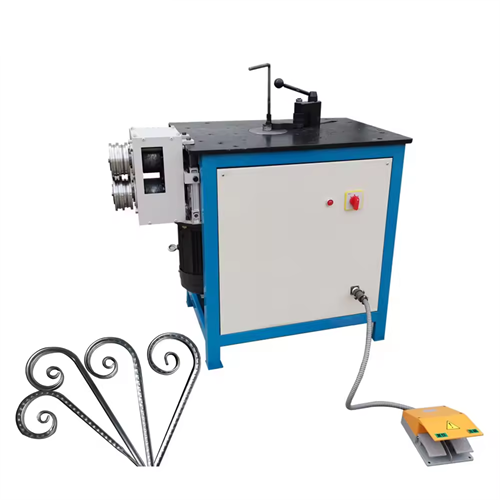

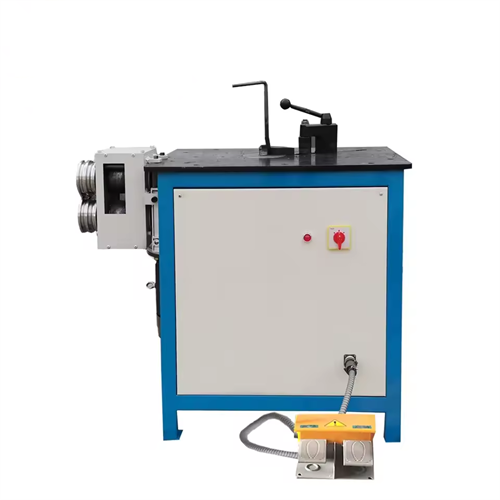

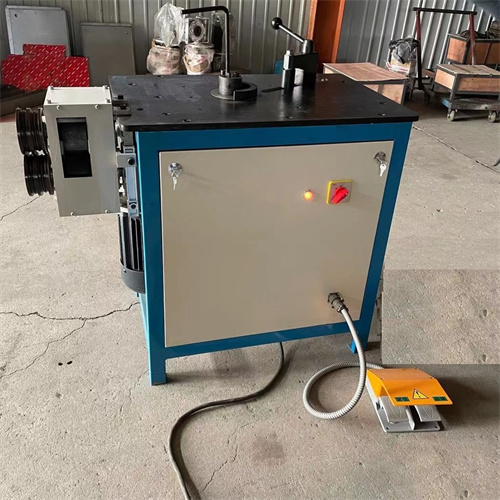

DW16G Program Controlled Scroll Bender is improved from DW16E Electric Scroll Bender. It based on DW16E to improve the function of machine, it can bend the tube more easy. This machine also add fishtail rolling function and tube rolling function.
Technological Depiction：
DW16G Two in One Program Controlled Scroll Bender
| ||
Max Working Ability | Flat Iron | ≤8mm*50mm |
Round Steel | ≤Φ14mm | |
Square Steel | ≤14mm*14mm | |
Rongd tube | ≤Φ25mm | |
Square tube | ≤25mm*25mm | |
Motor Performance | Power： 1.5KW Voltage： 380V | |

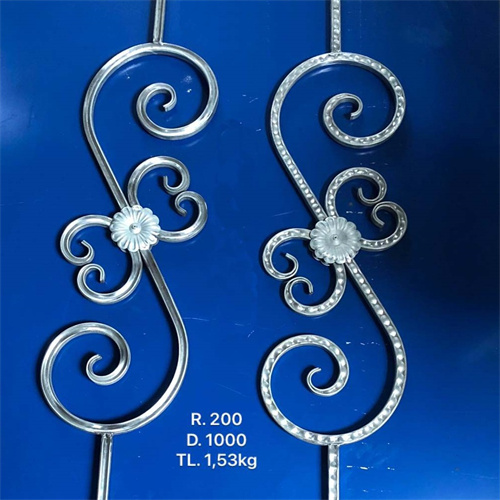

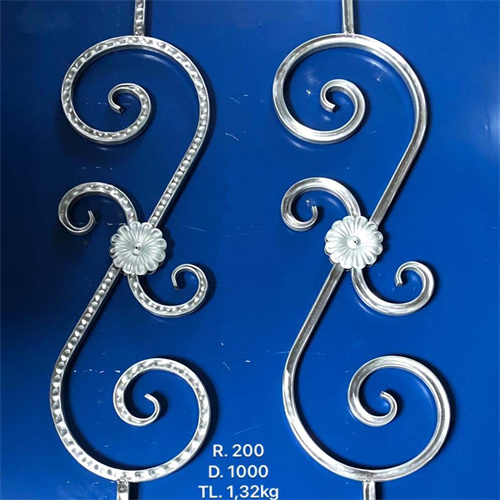

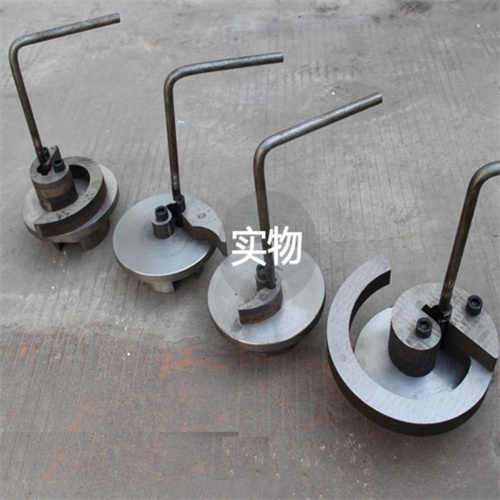

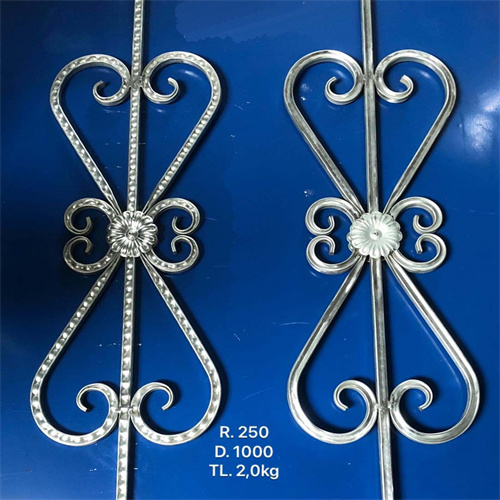

Main Features | 1)Die novelty designed, surface smooth, mold our spread a large space, convenient for operation. 2)It is convenient for changing dies. 3)The high working ability can bend square steel tube 25*25MM. 4)High produce efficiency, it can bend C sample as 20*6MM 450pcs per hour. 5)Comprehensive function, it can bend all kinds and specification of C, P, and S patterns. The machine fit for processing product pattern of all kinds and sizes, is equipped with three kinds of holdup wheels: φ50mmφ30mmφ20mm. | |
Packing Dimension | 1000mm×700mm×1200mm | |
N. W. (kg) | 360 | |
G.W. (kg) | 380 | |
