BG2 General Electric Pipe Bender This machine is used to process square pipe, round pipe, stainless pipe and flat iron. I

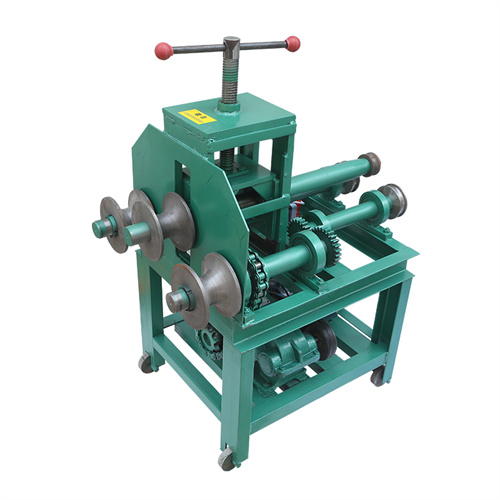

BG2 General Electric Pipe Bender
This machine is used to process square pipe, round pipe, stainless pipe and flat iron. It is the necessary equipment to bend pipe for producing gates. The machine can be installed with the dies on both sides. It also can bend flat iron.
Technological Depiction：
BG2 General Electric Pipe Bender | ||
Working Ability | Square Pipe | 20mm×20mm～80×80mm |
Round Pipe | Φ19mm～76mm | |
Motor Performance | Power：2.2KW Voltage：380V/220V | |

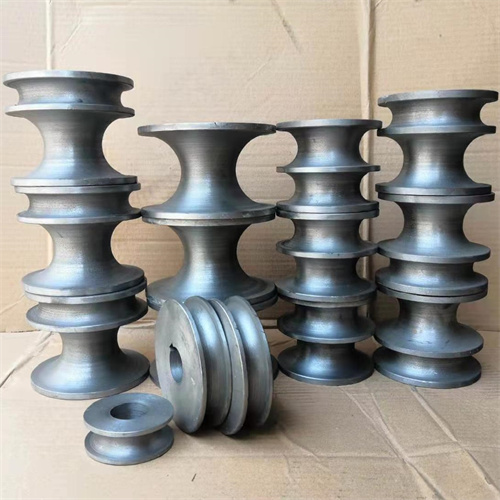

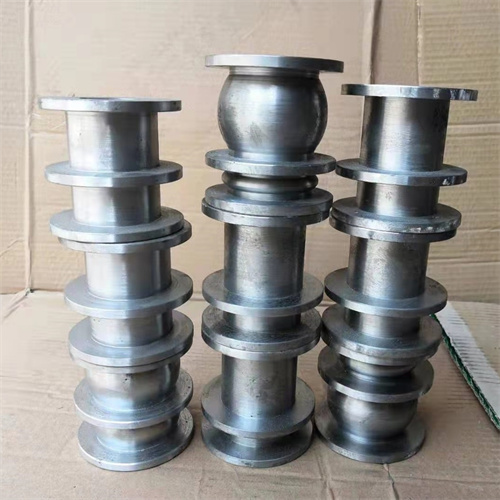

Main Features | 1）Working ability: 3mm thickness tubes. 2）It can install dies on both side. 3）Moulds: There are 14 kinds of the dies come with the machines, 6 sets for square pipe: 20×20mm, 25×25mm, 30×30mm, 40×40mm, 50×50mm, 60×60mm Besides that. 8 sets for round tube: φ19mm, φ22mm, φ25mm, φ32mm, φ38mm, φ51mm, φ63mm, and φ76mm. 4). Use: Making all kinds wrought iron gate, fence, railling, handrail, greenhouse, and other kinds steel strucure and so on. | |
Packing Dimension | 1000mm×800mm×550mm | |
N.W. (kg) | 220 | |
G.W. (kg) | 255 | |
