DN25A Torsion and Twist Machine

The dies come with the machine:Ⅰ、5 sets for square steel: 2020、1818、1616、1414、1212Ⅱ、3 sets for flat iron: 308、206、164Technolo

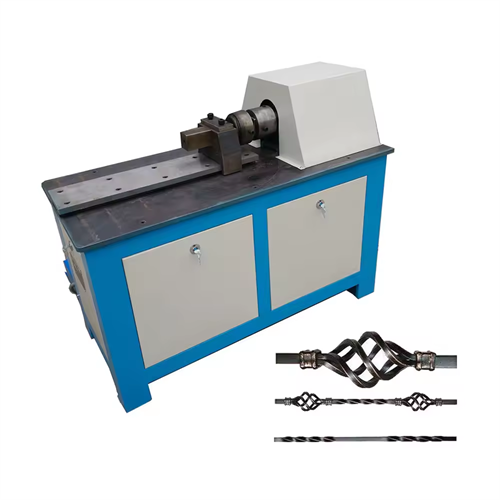

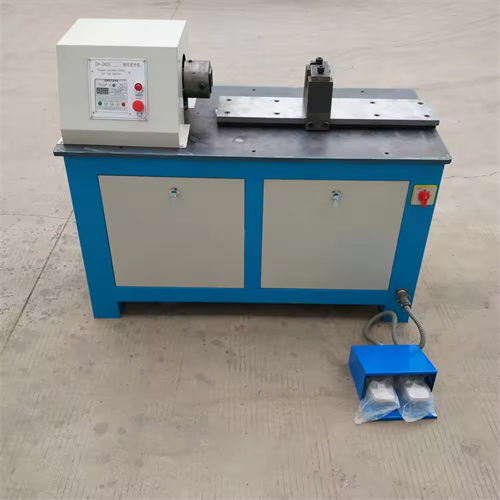

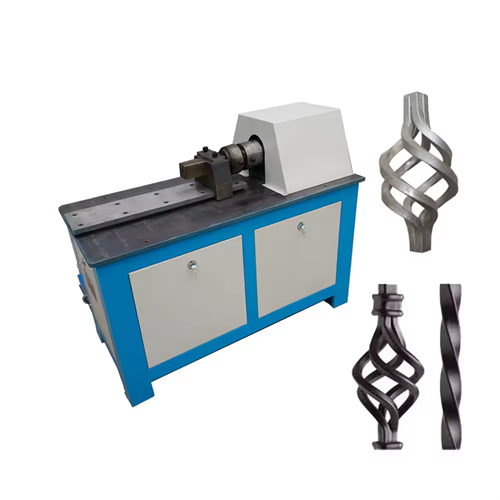

DN25D Program Controlled (two-in-one) Torsion and Twist Machine is made on the basis of the original electric torsion and twist machine. The program of machine is automatic correction, that keep the all products are same. For this machine, the basket twisting mechanism can be exchanged with the tailstock of the original machine. To take apart the stretching slide guide of the twist tailstock, then push on the flower basket mechanism and connect it with the original power outlet to twist flower basket. Therefore the machine can twist not only pretzel shape but also flower basket (bird cage).

The dies come with the machine:

Ⅰ、6 sets for square steel: 25×25, 20×2018×1816×1614×1412×12

Ⅱ、3 sets for flat iron: 30×820×616×4

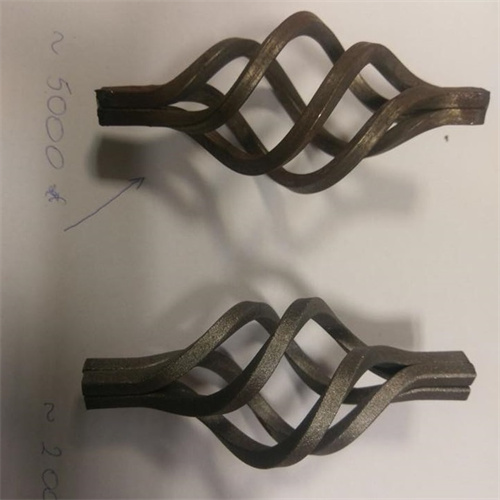

Ⅲ、4 sets for basket: 5×56×67×78×8

2 sets for 16×16, the size of basket: H150×W80H140×W70 (mm)

                   2 sets for 12×12, the size of basket: H130×W60H100×W50 (mm)

Technological Depiction


DN25D Program Controlled (two-in-one)

Torsion and Twist Machine



Pretzel Twisting Ability

Length

200800mm

Specification

25mm×25mm



Twist Basket Material

Square Steel

5×5mm,6×6mm, 7×7mm, 8×8mm

Round Steel

Φ6mm, Φ8mm

Motor  Performance

Power2.2KW        Voltage380V

Packing Dimension

1500mm×700mm×1400mm

N.W. (kg)

600

G.W. (kg)

650




annex:
