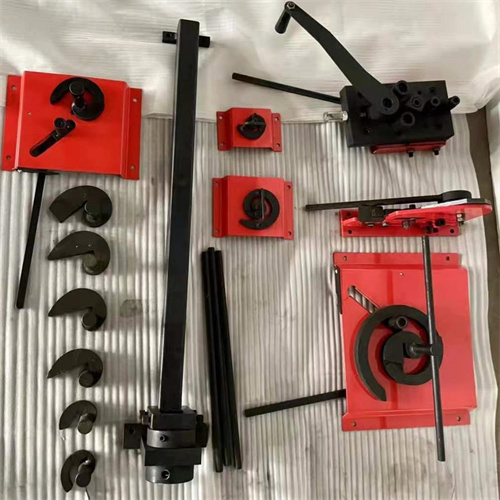

JG-03 Pattern bender hand tool(13 piece set)
  • KN
  • china

The tool set in JG Series is produced for both the home and overseas market. Its functions include punching, shearing, twisti


The tool set in JG Series is produced for both the home and overseas market. Its functions include punching, shearing, twisting, scrolling, angle-bending, riveting and circle-forming.

The JG-03 13 pieces tools is the developed and updated from the old tools set. We abandoned the old process of casting the tools parts. Now we cut the tools parts from the whole piece of mould steels, so the finished tools are more sturdy and durable. And the scrolling tools also add up to more 4 kinds scrolls.

With this equipment combining a tube bending tool can make up a bigger line to produce the folling works:

A.  Gates, Fences and Balustrades.
B.  Exterior Home Improvement Projects - Garden Furniture, Rose Arches, Name Plates and Signs, etc.
 C. Home Interior Projects - Tables, Shelving and Bracketery, Lighting and Candelabra, Plant Stands and Displays.
D. Home Security - Door/Window Grilles and Exterior Lighting.

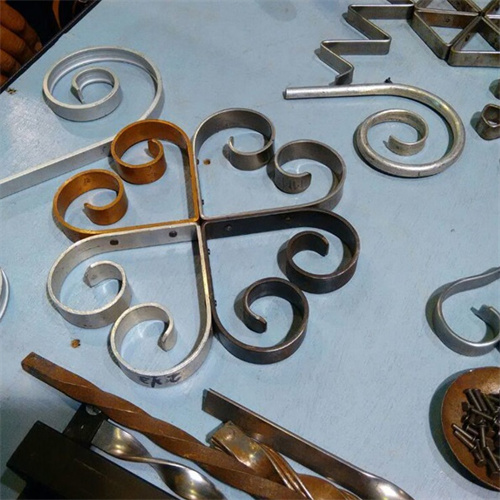

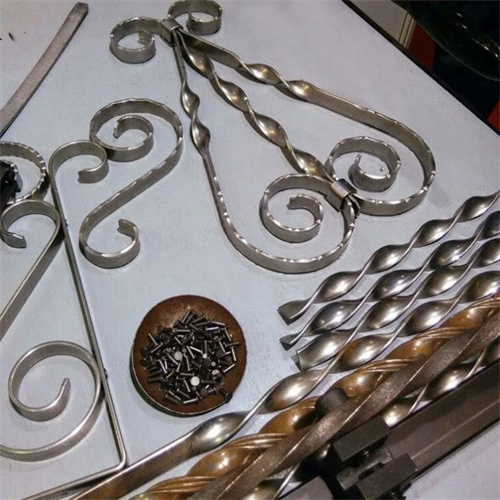

E. Wrought Iron, Crafts and Garden Products.
F. Construction and Maintenance Work.
G. General Metalwork, Fabrication and Wirework.



            Parameters

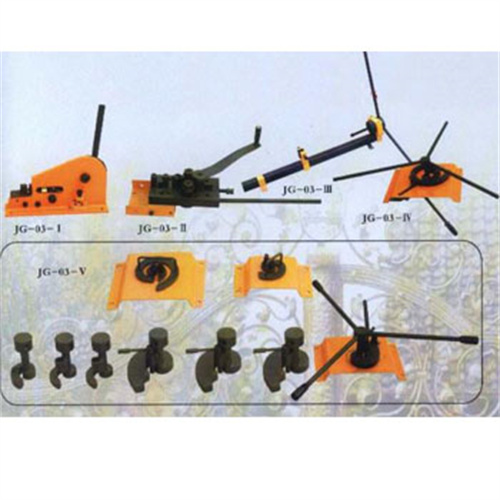

Item

JG-03-I

JG-03-II

JG-03-III

JG-03-IV

JG-03-V

Punching (mm)

Φ4

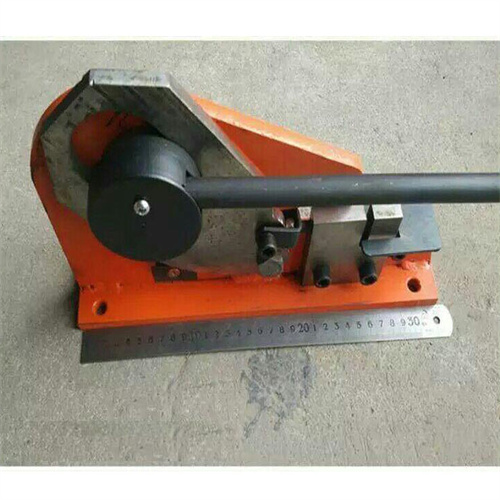

Shearing(mm)

40*5

6*6

Φ6

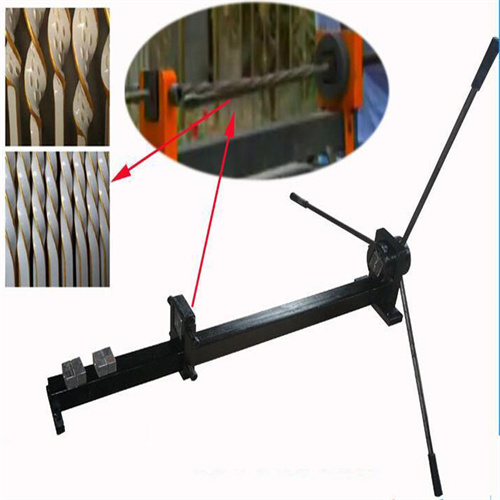

Twisting (mm)

40*5

14*14

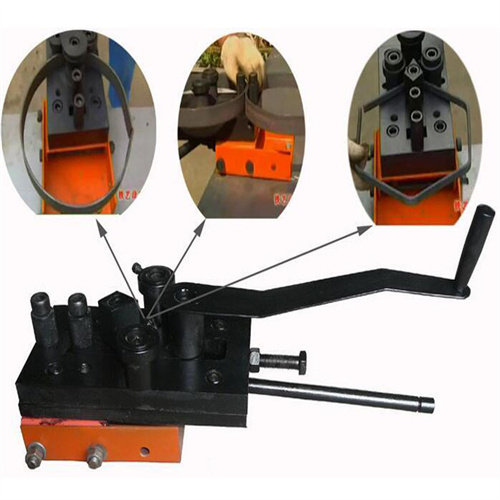

Bending and Scrolling (mm)

40*5

12*12

Φ12

Angle bending

60º

Riveting (mm)

4*30

Circling (mm)

R60

Net/Gross Weight (kg)


87/92

Packing size (L*W*H)


1120*200*300
