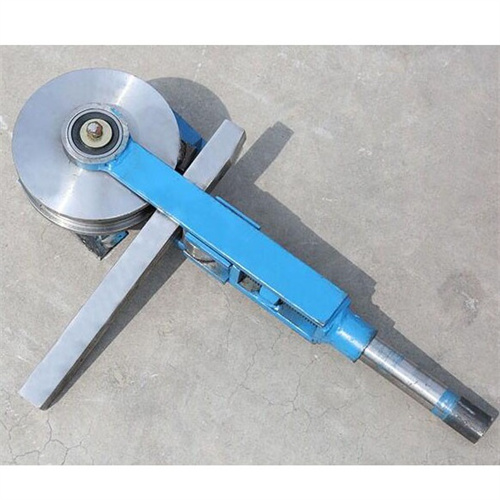

SWG25 tube bending machine
ModelBending range(mm)Bending formers(in)Wall thickness of pipe(mm)G.W.(Kg)Volume(mm)EC-SWG-25Φ16-Φ331/2" 5/8" 3/4&
Model | Bending range(mm) | Bending formers (in) | Wall thickness of pipe (mm) | G.W. (Kg) | Volume (mm) | |
EC-SWG-25 | Φ16-Φ33 | 1/2" 5/8" 3/4" 7/8" 1" | 12,16 | 0.6-2.0 | 60 | 660×460×180 |
Features:
a.Suitable for mild steel and stainless steel pipes of 12-25mm.

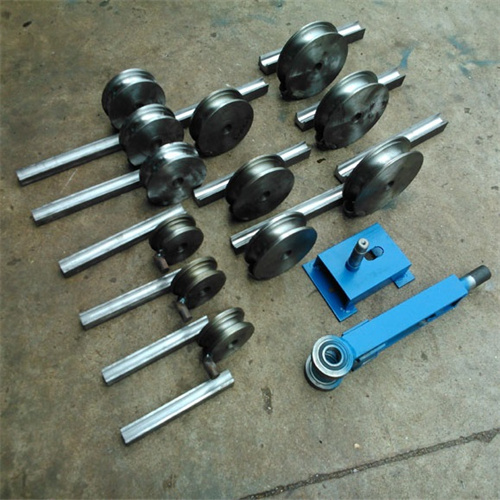

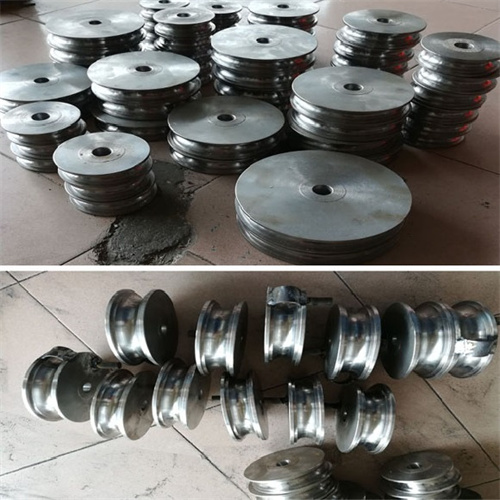

b. 5 Dies, 5 Rollers (including Base, Clamp and extending handle).
c. Bends round tubes (Outer diameter): 12mm (radius 60mm), 16mm (radius 80mm), 19mm (radius 90mm) , 22mm (radius 110mm) and 25mm.
d.Bending tube pipe thickness: 0.6mm-2.0mm.
e.Maximum bending angle: 180°.
f. Mounts quickly and easily to your workbench.
g.Strong steel carry case.
annex:
