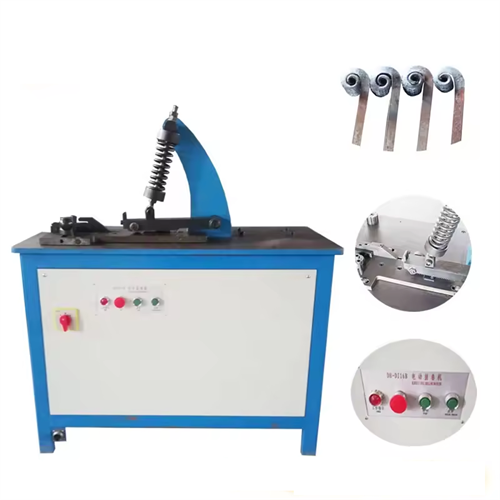

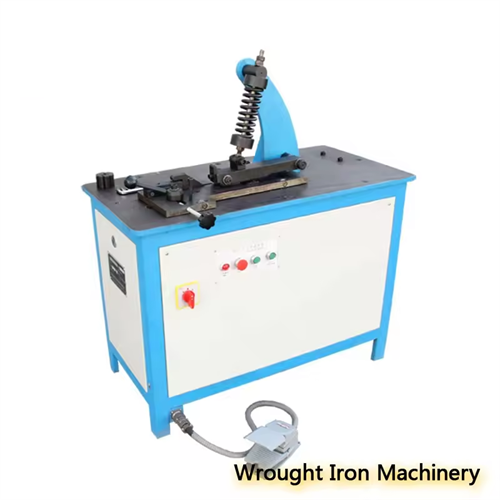

DJ16 Electric Make Coil Machine
  • KN
  • china
  • wrought iron works
  • wrought iron machine

Technological Depiction: DDJ16 Type Electric Make Coil Machine Max working abilityFlat iron(heat)1040 mmSquare steel(fish


Technological Depiction






DDJ16 Type Electric Make Coil Machine





Max working ability

Flat iron(heat)

10×40  mm

Square steel(fish tail heat)

20×20 mm

Round steel(squash or fish tail)

≤φ20 mm





Main features

1This machine is used single cylinder and single motor for moving, that is time and electricity saving.

2Dia.<35mm can make the coil in one time, dia.>35mm can make in twice, the max working ability is φ70mm.

3It is easy to operate, and high produce efficiency, it is good coherence. It is saving labor.

4It can produce 60-80 pcs coils per hour.

External dimension

1270mm×550mm×880mm

N. WEIGHT (kg)

250

G. WEIGHT (kg)

300
