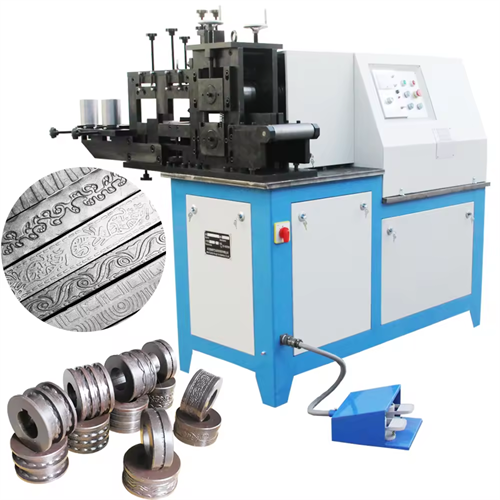

JK-DL100 Cold Rolling Embossing Machine is the third generation that our company developed. The working ability is much bigg
JK-DL100 Cold Rolling Embossing Machine is the third generation that our company developed. The working ability is much bigger, and it have variety of moulds.

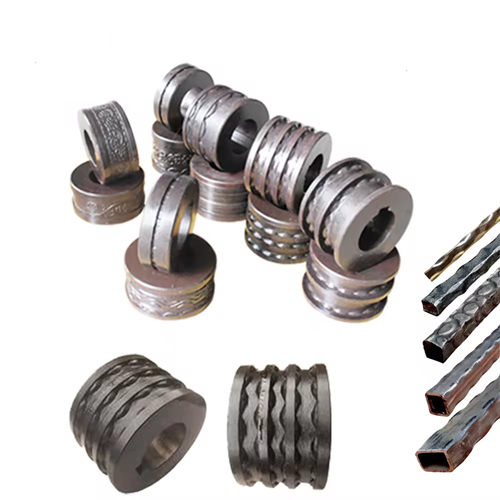

There are 15 kinds of attachment dies, otherwise 160 kinds of the dies for choosing.
Technological Depiction：
DL100 Cold Rolling Embossing Machine | ||
Max Work Ability | Flat Iron | ≤10mm×60mm |
Square Steel | ≤30mm×30mm | |
Square Tube | ≤100mm×100mm | |
Rolling Speed | 1～466M/H | |
Motor Performance | Power: 7.5KW Voltage: 380V | |
Main Features |

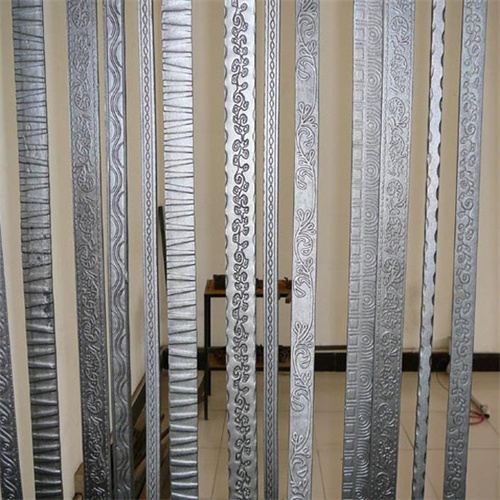

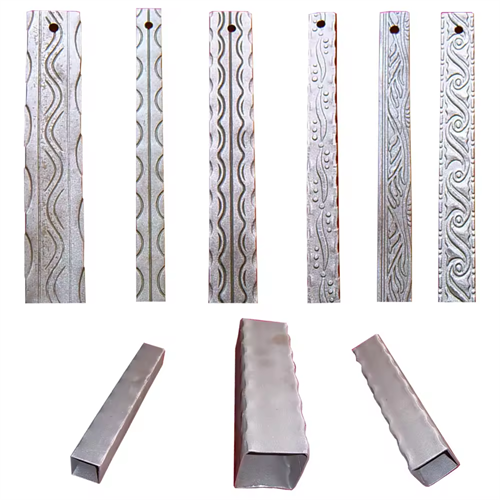

1)It used cyclonical two-speed reducer, running smooth, safe and reliable 2)The machine can process embossed and indented flat iron materials. And the veins clear appearance 3)Comprehensive processing performance, and cold-rolled moderate speed, a leveling, straighten framework. 4)It has manual control and foot switch. High Production efficiency. | |
Packing Dimension | 2005mm×810mm×1520mm | |
N.W ：(kg) | 1350 | |
G.W：(kg) | 1400 | |
