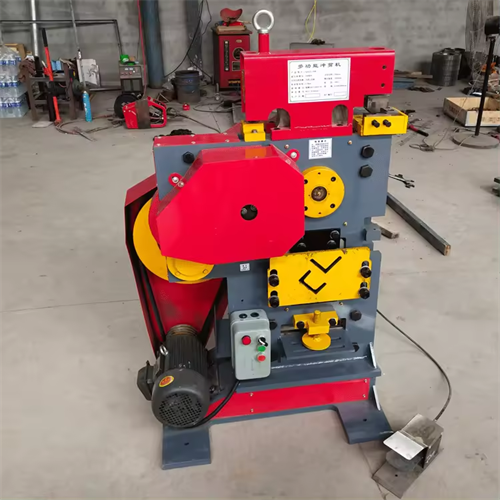

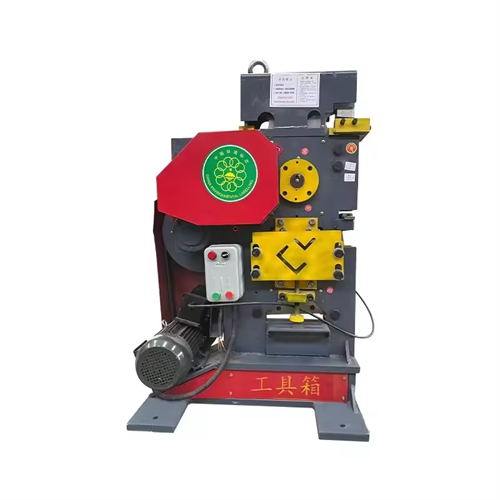

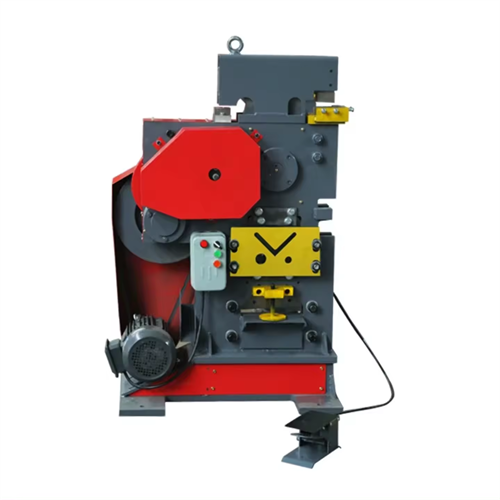

steel shear machine
- KN
- china
- steel works
- steel cutting shearing machine
ModelQA32-8BQA32-10QA32-12QA32-14Shearing force360KN500KN900KN1200KNStroke number30times/min30times/min30times/min30times/min
Model | QA32-8B | QA32-10 | QA32-12 | QA32-14 |
Shearing force | 360KN | 500KN | 900KN | 1200KN |
Stroke number | 30times/min | 30times/min | 30times/min | 30times/min |
Cutter travel distance | 27mm | 30mm | 36mm | 40mm |
Motor | 2.2KW | 3KW | 4KW | 5KW |
Voltage | 380V 50HZ 3p | 380V 50HZ 3p | 380V 50HZ 3p | 380V 50HZ 3p |
Dimension | 900*600*1100mm | 900*600*1250mm | 1100*600*1450mm | 1200*700*1500mm |
Weight | 550KG | 700KG | 1100KG | 1400KG |
annex:
